Comparative overview and why softening-point shifts matter
Selecting between commercial-grade pine resin and high-purity natural pine resin forces a trade-off conversation centered on thermal consistency, flux performance, and long-term stability. In surface-mount soldering and wave processes, formulators rely on predictable softening point behavior to control tack, wetting, and residue hardness. Practical formulator notes frequently reference soldering flux rosin during blend optimization and, for alcohol-based chemistries, the role of alcohol soluble rosin is decisive for final flux solvency and residue characteristics.
ASTM E28 parameters that determine measurement fidelity
The ring-and-ball softening point test is only useful when its controlled parameters are enforced. For repeatable results the test must use a heating rate of 5 °C/min from ambient until the ball descent occurs, the bath medium must be chosen by expected range (glycerin for softening points up to about 200 °C; silicone oil for higher ranges), and specimens must be cast in standard brass rings and equilibrated for at least 15 minutes before the run. These explicit settings — heating ramp, bath medium, specimen equilibration — reduce variability between labs and expose true material differences in softening-point shift under thermal aging or solvent exposure.

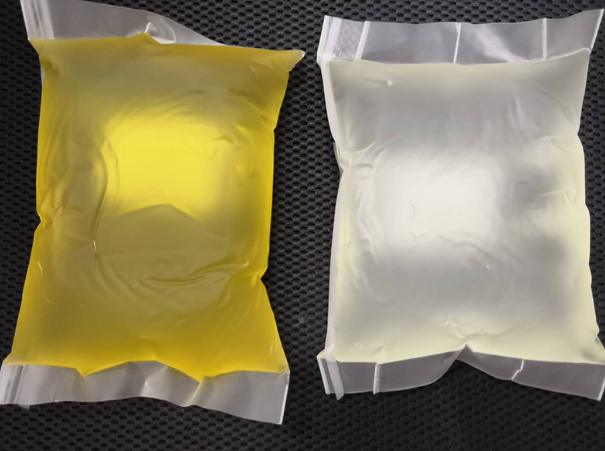

Technical trade-offs: commercial-grade vs high-purity
Commercial-grade pine resins deliver cost advantages and broader acid-distribution profiles. That heterogeneity tends to widen softening-point distributions after thermal cycling because minor resin acids and oxidized fractions soften or cross-link at different temperatures, producing measurable softening-point shifts. High-purity natural pine resin narrows that distribution; fewer oxidized species means tighter softening-point reproducibility and lower drift after storage or board-level reflow cycles. Industry terms that matter here: softening point, acid value, and tackiness — each links to behavior on the assembly line and the solder alloy interface.
Process-driven impacts on flux formulation and assembly
When a flux uses alcohol soluble rosin for activity, softening-point drift affects solvent uptake during cure and the final residue profile. A resin that drifts downward during storage can increase tack and flux pickup on fine-pitch components; conversely, upward drift hardens residues, reducing cleanability. In production I’ve seen Shenzhen PCB lines switch resin grades to stabilize paste release and reduce tombstoning rates — small changes in resin purity had outsized operational impact. — That operational learning matters to engineers and procurement alike.
Common mistakes and mitigation tactics
Teams commonly accept vendor softening-point certificates without matching test parameters to their lab method. The mitigation checklist: (1) verify vendor measurements used the 5 °C/min heating profile and proper bath medium; (2) run accelerated thermal aging on candidate resins at controlled intervals (for example, 72 hours at 80 °C) to quantify softening-point shift; (3) measure acid value and solubility in the intended solvent system to predict interaction with rosin flux chemistry. These procedural checks reduce field surprises and align material selection with assembly requirements.
Production teardown: operational costs, variability, and scale
At scale, material variability translates to rework, cleaning cycles, and solder joint inconsistency. Commercial-grade resin lowers unit cost but increases quality-control overhead. High-purity resin raises raw material cost yet simplifies process windows and reduces defect rates — often delivering lower total cost of ownership. Use bench trials that combine thermal cycling and solvent exposure to simulate real process stresses; quantify softening-point shift in °C and correlate to residue hardness and cleaning time during line audits.
Three golden rules for selecting resin and validating performance
1) Match test methods: insist on vendor data that explicitly states test parameters — heating rate 5 °C/min, bath medium choice, and specimen conditioning — then reproduce them in-house. 2) Measure functional impact: translate softening-point shift into metrics your line cares about (residue hardness, pick-and-place pickup rate, cleaning time). 3) Prioritize solvent compatibility: verify alcohol soluble rosin content and acid value to ensure flux solvency and consistent wetting.
Choosing the right balance between cost and consistency is an engineering decision grounded in measurable parameters; implement these evaluation metrics and you’ll reduce surprises on the line. KOMO. —
